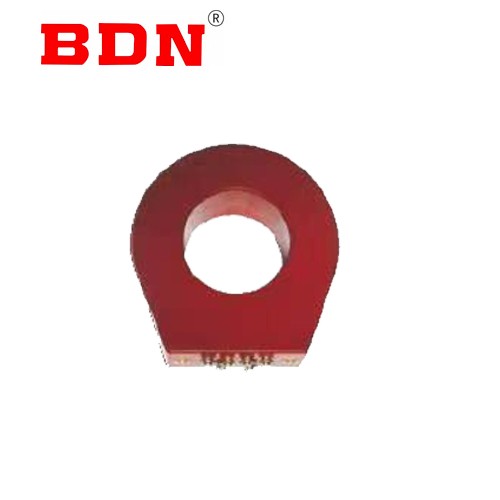

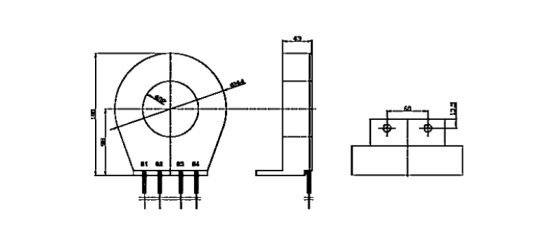

12kv Open type current transformer

Special specifications or high-precision products can be made according to user needs. The current transformer can only use one of the changes during use, and several ratios cannot be used at the same time.

General:

This type of current transformer is a new patented product specially developed by our company for the intelligent and lightweight power system. It is small in size and light in weight, and the combination is very reasonable. realizable A, B, C three-phase protection and zero sequence grounding protection.

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Stable primary current	Rated secondary voltage（A）	Accuracy class and rated burden(VA)			Rated insulating level(kV)
Type	Stable primary current	Rated secondary voltage（A）	5P(10P)			Rated insulating level(kV)
LZW20-10	100、150、200	5（1）	2.5	3.75	5	10（12）/42
	100、200、300		2.5	5	7.5
	200、300、400		5	7.5	10
	200、400、600		5	10	15
	600、800、1000		15	20	25
	800、1000、1200		15	20	25
