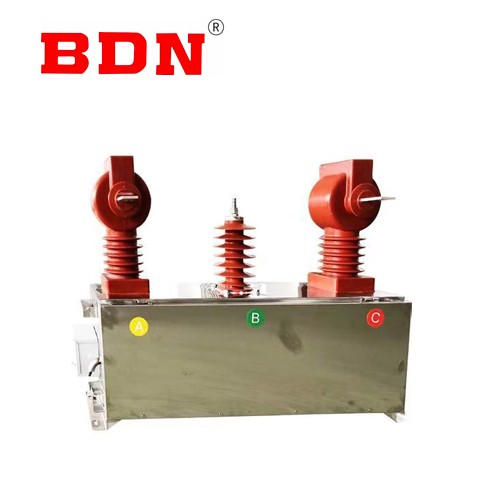

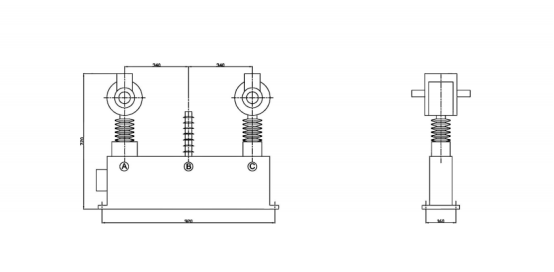

outdoor 6/10kv three-phase combined transformer

This type of transformer internal epoxy resin vacuum casting structure, external iron shell type, mainly suitable for rated frequency 50Hz or 60Hz, rated voltage 10kV and below power system for electric energy measurement, current and voltage measurement.

General:

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Rated voltage ratio（V）	Rated current ratio(A)	Voltage transformer accuracy rating and rated output(VA)	Current transformer accuracy rating and rated output(VA)	Rated insulating level (kV)
Type	Rated voltage ratio（V）	Rated current ratio(A)	Level0.2	Level0.2S	Rated insulating level (kV)
JLS-6	6000/100	5-600/5	2×20	2×20	7.2/32/75
JLS-10	10000/100	5-600/5	2×20	2×20	12/42/75
