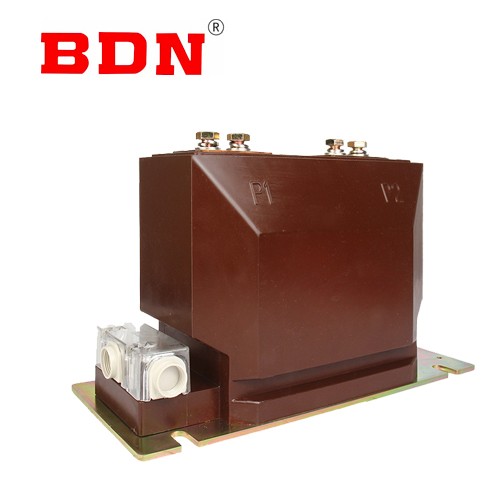

10kv fully enclosed indoor transformer CT

Current transformer is an indoor epoxy resin cast pillar type full-working condition product, used for relay protection or electrical energy measurement in power systems with rated frequency of 50hz and rated voltage of 10kv.

General:

Current transformer series Current transformer is epoxy resin cast fully enclosed pillar products, suitable for rated frequency 50Hz or 60Hz rated voltage 10kV power system for energy measurement, current measurement and relay protection. This product is IEC60044-1 and GB1208 "Current transformer" standard current transformer is epoxy resin cast insulation completely closed structure resistant to pollution and moisture. Press the primary outlet screw tightly during installation to ensure reliable contact.

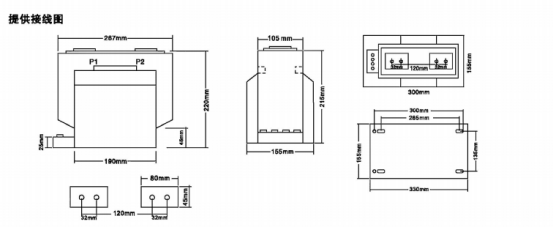

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

ated primary current（a）	Accuracy classes combination	Rated secondary output（VA）			1s thermal current（kA）	Rated dynamic current（kA）
ated primary current（a）	Accuracy classes combination	0.2S(0.2)	0.5S(0.5)	10P15	1s thermal current（kA）	Rated dynamic current（kA）
10	0.2S/10P15 0.5S/10P15 0.2/10P15 0.5/10P15	10	15	15 20	1.5	3.75
15					2.8	7
20					3	7.5
25					4	10
30					5.4	13.5
40					6.3	15.8
50					8.1	20
75					12.5	31.5
100					25	63
150					37.5	95
200					50	100
300					63	100
400					80	110
500
600
800
1000		15	20	30
1200					100	130
1500
2000
2500
3000
