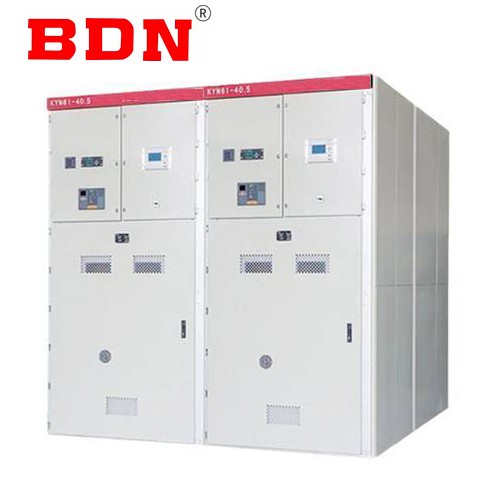

HV AC metal enclosed switchgear 40.5kv

General:

The live tank can control, protect and detect the circuit, and can also be used in places with frequent operations. The switchgear conforms to GB/T11022-2011.GB3906-2006 and DL404-2007 standards.

Service Environment

• Ambient temperature: upper limit +40℃, and the average measured within 24 hours does not exceed 35℃, the lower limit -10℃.

•  Altitude: No more than 1000m.

•  Relative humidity: The daily average is not more than 85%(+25℃).

• The intensity of the earthquake does not exceed 8 degrees.

•  Water vapor pressure: the daily average is not more than 2.2kPa, the monthly average is not more than 1.8kPa.

•  Surrounding environment: There is no danger of fire, explosion, serious pollution, chemical corrosion and violent vibration.

• Key Feature

• The switchgear is designed according to GB3906-2006 and IEC60298 armoured metal enclosed switchgear standards. The whole is composed of two parts: the cabinet and the withdrawable part (hand car).

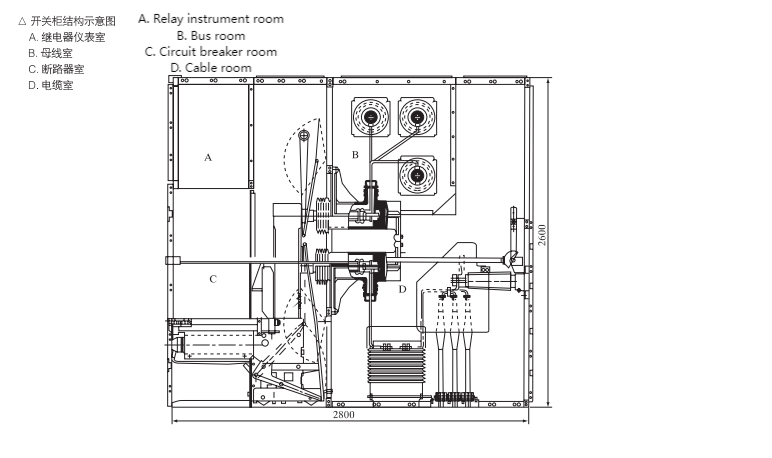

• The cabinet structure is assembled. It's bolted together. The switchgear is divided into circuit breaker room, main bus room, cable room and relay instrument room with a metal partition.

• The protection level of the shell reaches IP3X, the protection level of each compartment is IP2X, and all metal structural parts are reliably grounded, and each compartment of the main circuit system has an independent exhaust pressure release channel.

Technical Data

• Name		Unit	Data
  Rated voltage		kV	40.5
  Rated current		A	1250、1600、2000、2500
  Rated frequency		Hz	50
  Rated short-time withstand current		kA	20、25、31.5
  Rated peak withstand current		kA	50、63、80
  Rated power frequency withstand voltage		kV	95/1min
  Rated lightning impulse withstand voltage (peak)		kV	185
  Rated short-circuit duration		s	4
  Class of protection			IP3X
  Rated operating voltage	Opening coil	V	DC220/110、AC220/110
  	Closing coil
  Rated operating current	Opening coil	A	0.96(220V)、1.05（110V）
  	Closing coil
  Energy storage motor power		W	230
  Rated voltage of energy storage motor		V	DC220/110、AC220/110
  Energy storage time		S	≤12

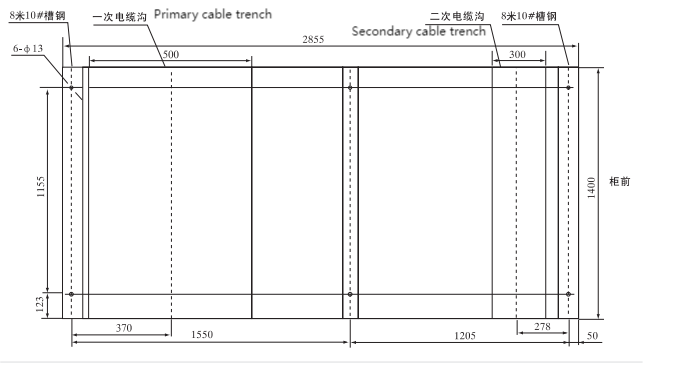

Drawing
