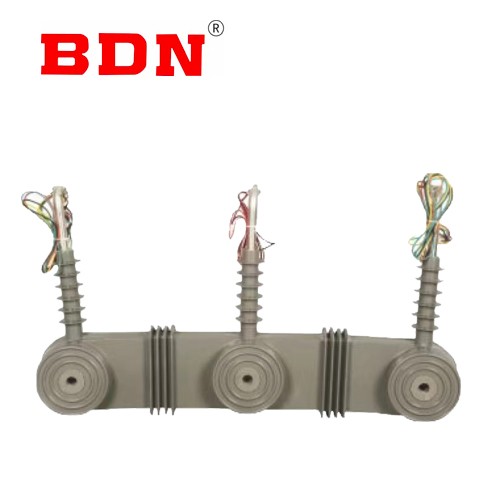

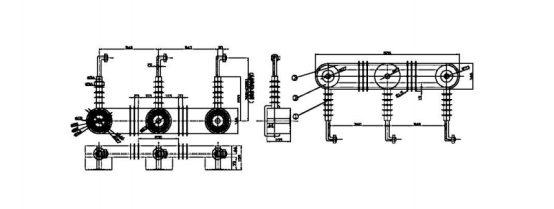

zero sequence current inter grated circuit transformer

Outdoor high-voltage vacuum circuit breaker for rated voltage 12KV, three-phase AC 50Hz outdoor power distribution equipment.

General:

Outdoor high-voltage vacuum circuit breaker for rated voltage 12KV, three-phase AC 50Hz outdoor power distribution equipment.

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Stable primary current		Rated secondary voltage（A）	Accuracy class and rated burden(VA)			Rated insulating level (kV)
				5P(10P)
LXZW32-12	100、150、200		5（1）	2.5	3.75	5	10（12）/42
	100、200、300			2.5	5	7.5
	200、300、400			5	7.5	10
	200、400、600			5	10	15
	600、800、1000			15	20	25
	800、1000、1200			15	20	25
	Zero-sequence	20	1	0.1Ω
		50		0.2Ω
