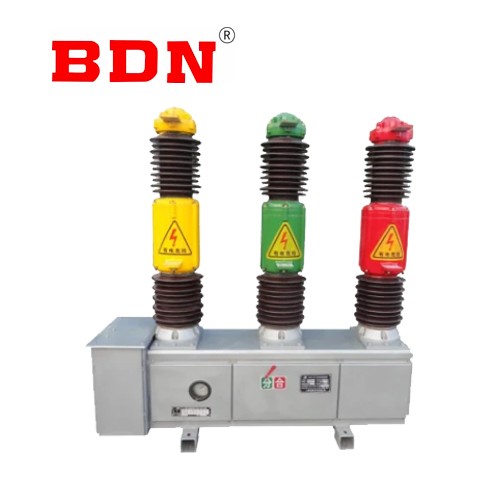

HV SF6 live tank circuit breaker outdoor40.5KV

General:

Reliable sealing performance, using imported sealant gasket, static seal using "O" type sealing ring structure, dynamic seal using "V" type sealing ring with spring pressure compensation structure. The secondary terminal board of the transformer is produced by the imported mold using the pressure injection process, which has strong anti-aging performance and ensures that the annual gas leakage rate is less than 1%.The whole product adopts stainless steel structure. Fasteners, panels and shells are made of stainless steel, and the internal bracket is hot-dip galvanized, which will never rust.The inner transformer metering grade iron core is made of microcrystalline alloy with high magnetic permeability, and the accuracy level can reach 0.2 or 0.2s. Each phase of the product can be equipped with 2-4 current transformers.

Service Environment

• The altitude does not exceed 2,500 meters;

• Plateau type does not exceed 4000 meters above sea level;

• Ambient temperature *** temperature does not exceed +40 degrees, *** temperature is not lower than -30 degrees.

• Relative air humidity: the daily average is not more than 95%, the monthly average is not more than 90% (25℃);

• Wind speed is not more than 35 m/s;

• The anti-pollution level is level II;

Key Feature

• The whole product adopts stainless steel structure. Fasteners, panels and shells are made of stainless steel, and the internal bracket is hot-dip galvanized, which will never rust.

• The inner transformer metering grade iron core is made of microcrystalline alloy with high magnetic permeability, and the accuracy level can reach 0.2 or 0.2s. Each phase of the product can be equipped with 2-4 current transformers.

Technical Data

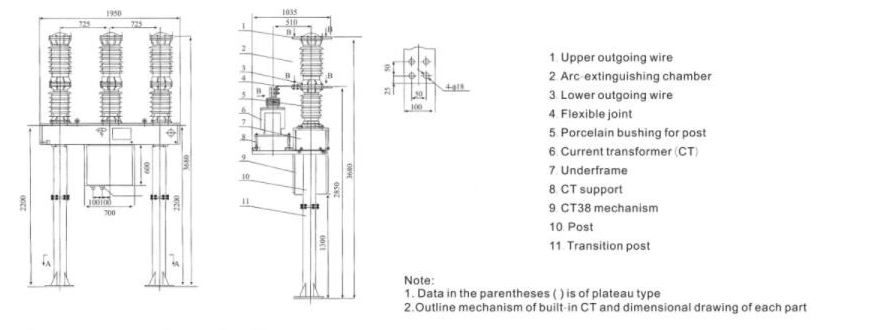

Drawing
