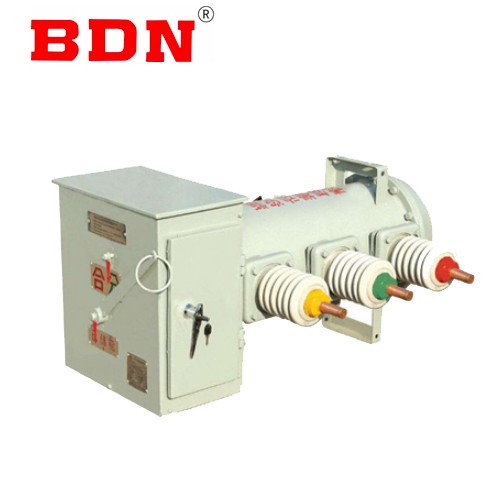

Medium voltage AC SF6 Circuit Breaker

This series of outdoor high voltage live tank SF6 circuit breaker is a new type of outdoor high voltage electrical appliance with sulfur hexafluoride gas as arc extinguishing and insulating medium. The operating mechanism is divided into three types: (Type 1) manual energy storage spring operating mechanism, (Type II) motor energy storage spring operating mechanism, (type III) DC electromagnetic operating mechanism, and the circuit breaker body on various operating mechanisms is perfectly combined into a whole

General:

Compared with other 10kV outdoor circuit breakers, this product has the advantages of simple structure, excellent arc extinguishing and insulation performance, small operating power, high rated parameters, long electrical life and no maintenance period. Using this product can not only reduce the floor space. Reduce engineering cost and eliminate fire danger, and can greatly improve the reliability of power system.

Service Environment

Ambient temperature: upper limit +40℃, lower limit -40℃.
Altitude: divided into 1000m conventional type and 2000m plateau type two.
Wind pressure: not more than 700Pa (wind speed less than 35m/s).
Seismic cracking: not more than 8 degrees.
Installation site: There should be no fire, explosion danger, serious pollution, chemical corrosion and violent vibration.

Technical Data

Name	Unit	Data
Rated voltage	kV	10
Rated current	A	400 630 1250
Rated short-circuit breaking current	kA	6.3 8 12.5 16
Rated short-circuit current	kA	16 20 31.5
Rated peak withstand current	kA	16 20 31.5
Rated short time withstand current	kA	6.3 8 12.5 16
Rated short duration	s	4
Rated short-circuit current breaking times	times	30

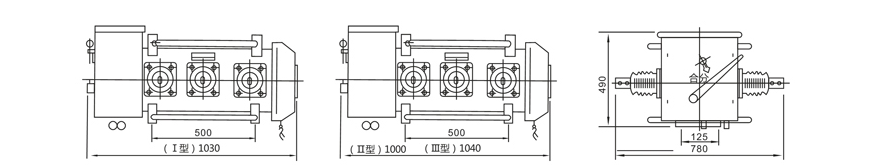

Weight	kg	Type Ⅰ 122 Type Ⅱ130 Type Ⅲ132
