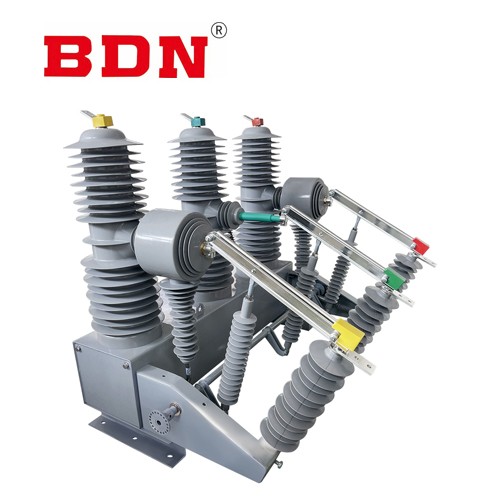

HV Vacuum Circuit Breaker 24kv distribution equipment

General:

The circuit breaker vacuum interrupter technique using solid seal, external insulation silicon Rubber sleeve, long life and high reliability, actuator can be miniaturized, highly reliable spring mechanism may also be advanced permanent magnet body. You can also configure isolating switches and intelligent controllers, with But when slicer kind of coincidence Used, enabling four remote functions and distribution automation.

Service Environment

• Ambient air temperature:+40℃~-40℃

• A height of not more than2000 meters above sea level

• The wind speed is not greater than 35m/s

• Anti-contamination level for grade IV

• The earthquake intensity does not exceed 8 degrees

• No fire, explosion, severe chemical corrosion of the place

• Key Feature

• The arc extinguishing chamber adopts special stainless steel brazing technology


• The insulating part is made of epoxy resin and silicone rubber composite insulating material

• Operating mechanism for the spring operating mechanism, manual and electric two

• The shell is made of high quality stainless steel material or ordinary steel plate with Dacromet anti-rust treatment process and then sprayed with UV-resistant varnish

Technical Data

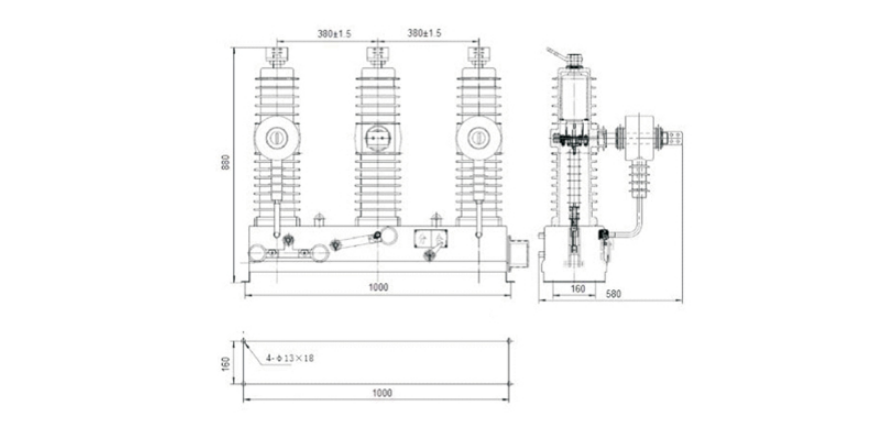

Drawing
