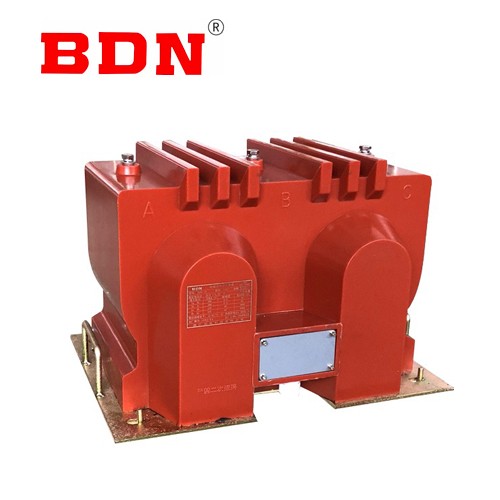

This type of transformer is an outdoor epoxy resin vacuum casting structure, which is mainly used for electric energy measurement and current and voltage measurement in power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV or below. The features of this product are large crawling distance, suitable for altitude areas, large secondary output capacity, stable insulation performance, pollution resistance, UV resistance, acid rain resistance, etc., and can produce with negative control output, power output.

General:

Indoor epoxy resin casting fully enclosed products, suitable for rated frequency 50Hz or 60Hz, rated voltage 10kV and below the power system for voltage, electric energy measurement and relay protection.

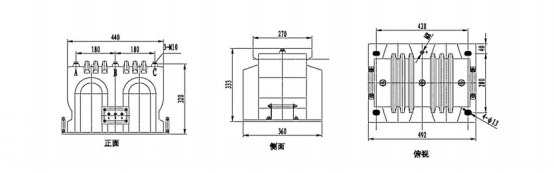

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV,7.2/30/60
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Rated voltage ratio（kV）	Rated frequency（Hz）	Rated output			Heat limit output（VA）	Rated insulation level（kV）
			Level 0.2	Level 0.5	Level 1
JSZV2-10-3	3/0.1	50、60	25	50	100	1500	3.6/25/40
JSZV2-10-6	6/.01						7.2/32/60
JSZV2-10-10	10/0.1						12/42/75

Type	Rated voltage ratio（kV）	Rated frequency（Hz）	Rated output			Heat limit output（VA）	Rated insulation level（kV）
			Level 0.2	Level 0.5	Level 1
JSZV2-10-3	3/0.1	50、60	25	50	100	1500	3.6/25/40
JSZV2-10-6	6/.01						7.2/32/60
JSZV2-10-10	10/0.1						12/42/75
