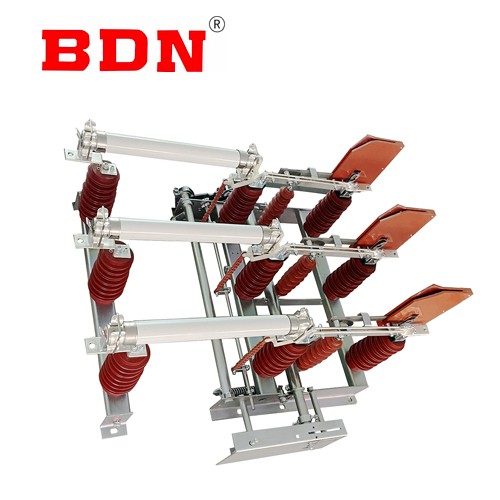

Wall-hung type AC HV Load Break Switch

General:

Indoor AC HV Load Switch is suitable in 50Hz,rated voltage of 12Kv the three-phase AC power system as the breaking load short-circuit current of the power and used the Closing. until the combination of electrical short-circuit current can be breaking any current can be used as protection purposes.

Service Environment

•  The ambient temperature: -25℃-+40℃,alpine region,≥-40℃

•  The altitude:≤1000M

•  Relative humidity: daily average value is not greater than 95%, monthly average is not greater than 90%

• The ambient air should not be obviously polluted corrosive or flammable gases and water vapor

Key Feature

• The load switch can be equipped with CS6-1 manual operation mechanism, CS manual or CJ electric operation mechanism dedicated to this product

• Load switches with fuses cut short circuit current

Technical Data

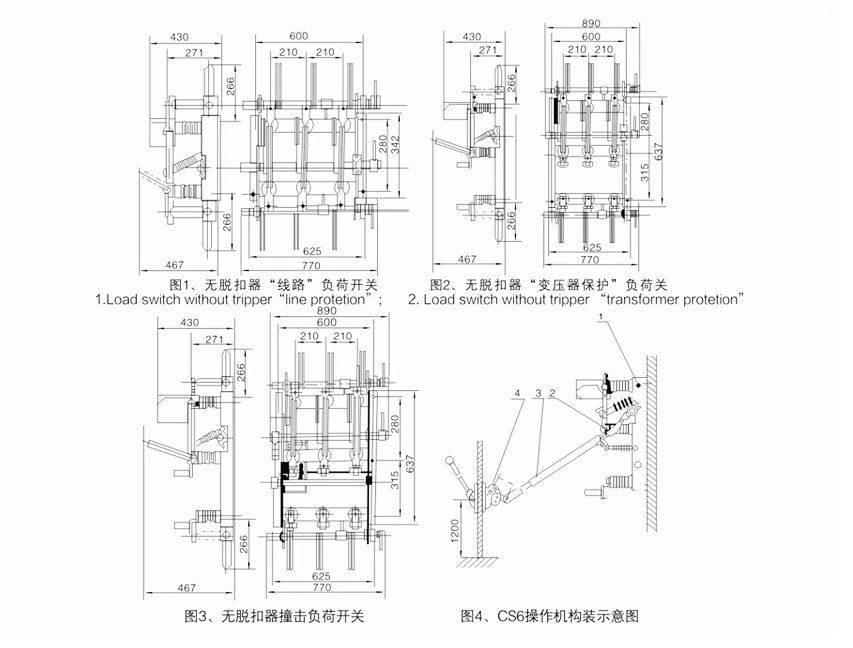

Drawing
