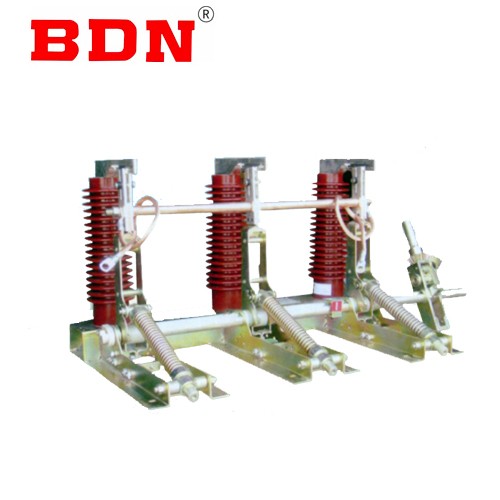

Indoor HV Earthing Switch

General:

Indoor high voltage(HV)earthing switch absorbs advanced new technical from domestic and abroad. It confirms to GB1985-2004 <ACHV DISCONNECT SWITCH AND EARTH SWITCH>standard. And applies to three-phase rated voltage 405kV. AC50/60Hzpower system. It can support the use of KYN61-405HV switch panel and other models, the foundation is protect the HV electric equipment when repair or maintenance.

Service Environment

• Altitude:≤1000m;

• Ambient temperature:-25℃-+40℃;

• Earthquake does not exceed degree 8;

• No fire, explosion, chemical erosion.

Technical Data

• Name		Units	Data
  Rated voltage		kV	40.5
  Rated short-time withstand current		kA	31.5
  Rated circuit-time making current		kA	80
  Rated peak withstand current		kA	80
  Rated short-circuit duration		S	300、350、400
  Rated insulting level	1min.PF withstand voltage	kV	To earth, phase to phase	95
  	Lighting impulse withstand voltage			185

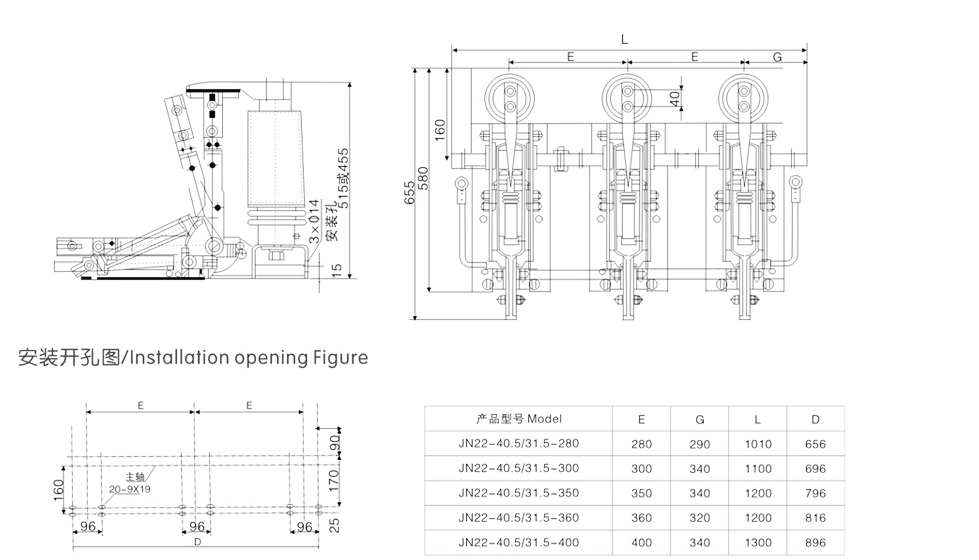

Drawing
