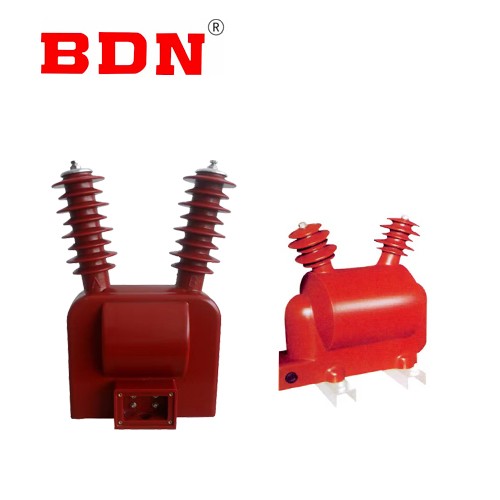

outdoor closed with fuse for protection potential transformer

General:

Potential transformer is 6kV voltage transformer, which belongs to outdoor single-phase pouring voltage transformer, Angle transformer, dry voltage transformer with fuse. Suitable for outdoor installation, it can be used as a voltage transformer for measurement, measurement and protection

Key Feature

• This type of voltage transformer is a pillar structure, using outdoor epoxy resin completely closed casting, with arc resistance, UV resistance, aging resistance, long life and so on.

• Because the transformer adopts fully enclosed castable insulation, small size and light weight, it is suitable for installation in any position and any direction.

• There is a wire protection cover at the end of the secondary outlet, and there is an outlet hole below it, and it can realize the measures to prevent electric theft.

• Safe and reliable, there are 4 mounting holes on the base channel steel.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV,7.2/30/60

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A

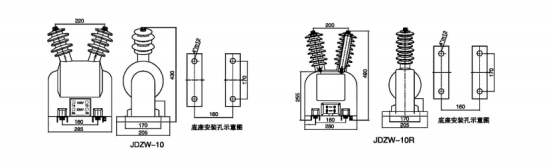

Drawing
