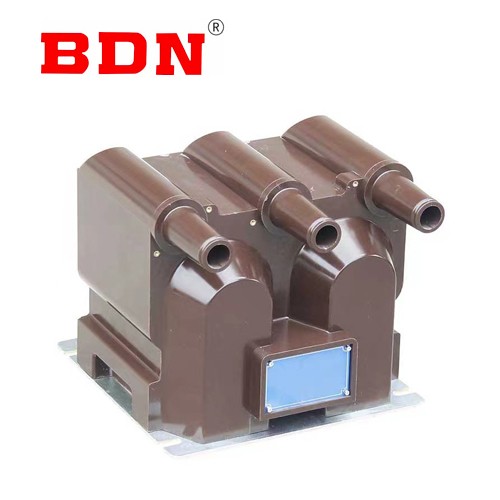

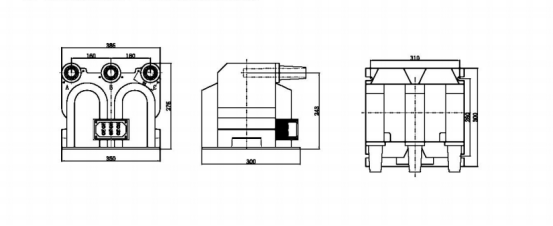

PT three phase with fuse potential transformer

Potential transformer is specially designed for XGW-12 outdoor AC fixed metal closed switch. The primary winding of this type of voltage transformer is protected by a fuse, which not only provides 100V measuring voltage, but also provides 220V operating power for the circuit breaker.

General:

The voltage transformer is specially designed for XGW-12 type outdoor AC fixed metal closed switch. The primary winding of this type of voltage transformer is protected by a fuse, which not only provides 100V measuring voltage, but also provides 220V operating power for the circuit breaker.

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV,7.2/30/60
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Rated voltage（V）		Rated output of secondary winging(VA)		Limit output of secondary wing(VA)	Rated insulating level(kV)
	Primary voltage	Secondary voltage	0.2	0.5
JSZV12A-10R	6000	100	20	30	2×400	7.2/32/60
		100/220
		100/100	15	20	2×（200/200）
	10000	100	30	50	2×500	12/42/75
		100/200
		100/100	15	20	2×（300/300）
			20	30
