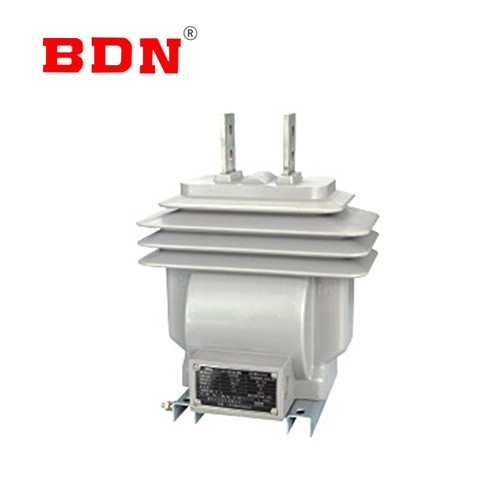

10kv outdoor high voltage current transformer

General:

The current transformer of this model is bus type plastic shell type insulation, the lower part of the product has a mounting plate for fixed installation, and the middle window hole is for primary bus passing. High and low voltage current transformer.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A




•




  Rated primary current（A）	Accuracy classes combination	Rated secondary output（VA）			1s thermal current（kA）	Rated dynamic current（kA）
  		0.2（S）	0.5	10P15
  10	0.2(S)/10P15 0.5(S)/10P15 0.2(S)/0.5/10P15 0.2(S)/10P15/10P15	10	15	15	1.44	3.6
  15					3	7.5
  20、25					4	10
  30					6.3	15
  40、50					9	22.5
  60					12.6	31.5
  75					15	37.5
  100					18	45
  150					25	55
  200					50	110
  250-600					60	130
  750-1000					80	160
  1200-1500					100	160

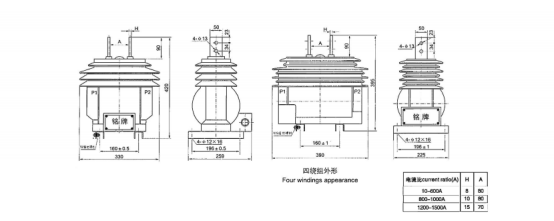

Drawing
