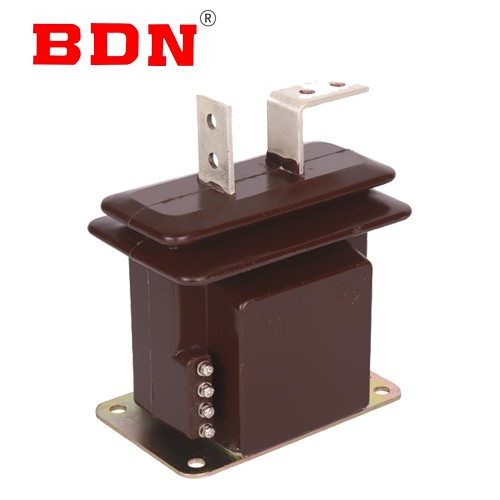

Fully enclosed indoor high voltage current transformer

General:

The current transformer is an epoxy resin cast fully enclosed and insulated pillar type current transformer, which is used for current and electric energy measurement and relay protection in AC lines with rated frequency of 50HZ and rated voltage of 10KV

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A




  Rated primary current（A）	Accuracy classes combination	Rated secondary output（VA）					1s thermal current（kA）	Rated dynamic current（kA）
  		0.2S 0.5S	0.2	0.5	10P10	10P15
  5-40	0.2(S)/10P 0.5(S)/10P	10	10	10	15	15	90lin	220lin
  50-400							100lin	250lin
  500							50	100
  600							56	110
  800							75	110
  1000							80	130

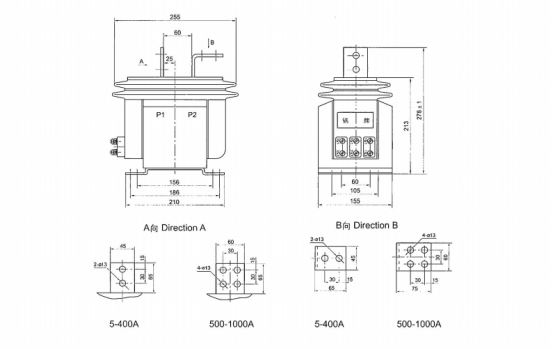

Drawing
