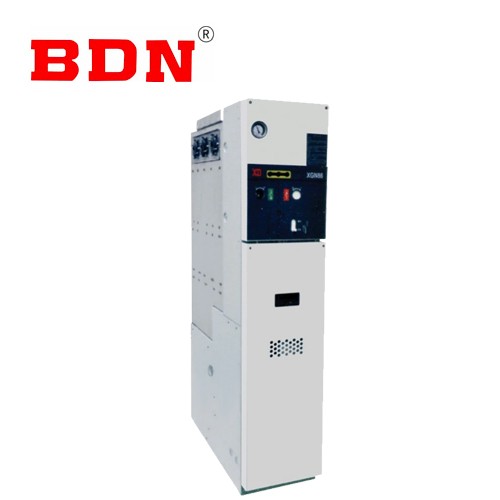

Five anti-latching switchgear 3.6, 7.2, 12kV

Fixed metal enclosed switchgear (referred to as switchgear). Used for 3.6, 7.2, 12kV three-phase AC 50Hz series as the acceptance and distribution of electrical energy, especially suitable for frequent operation occasions, the bus system is a single bus.

General:

The switchgear conforms to the requirements of national standard GB 3906-2006 "3.6kV-40.5kV AC metal enclosed switchgear and control equipment" and international standard IEC62271-200, and there are two proposed "five" blocking functions. The main switch of this switch adopts VS1-12 connected operating mechanism series vacuum circuit breaker, and the isolation switch adopts GN30-12 rotary isolation series products.

Service Environment

Ambient temperature: upper limit +40℃, lower limit -25℃;
Altitude: The altitude does not exceed 1000m;
Relative temperature: the daily average is not more than 95%; The monthly average is not more than 90%;
Earthquake intensity: not more than 8 degrees.
Surrounding environment: no fire, explosion danger and pollution level does not exceed 3, chemical corrosion and violent vibration places

Key Feature

The circuit breaker room is also provided with a pressure release channel, if the internal arc occurs, the gas can be released through the exhaust channel
The switchgear adopts the corresponding mechanical interlock

Technical Data

Name	Unit	Data
Rated voltage	kV	3.6、7.2、12
Rated current	A	630
Rated short-circuit breaking current	kA	16、20、31.5
Rated short-circuit closed current（peak）	kA	40、50、80
Rated short-circuit dynamic stable current (peak)	kA	40、50、80
Rated heat stable current	kA	16、20、31.5
Rated heat stable duration	S	4
Class of protection		IP2X
Structural form		Single bus broken
Mode of operation		Spring energy storage

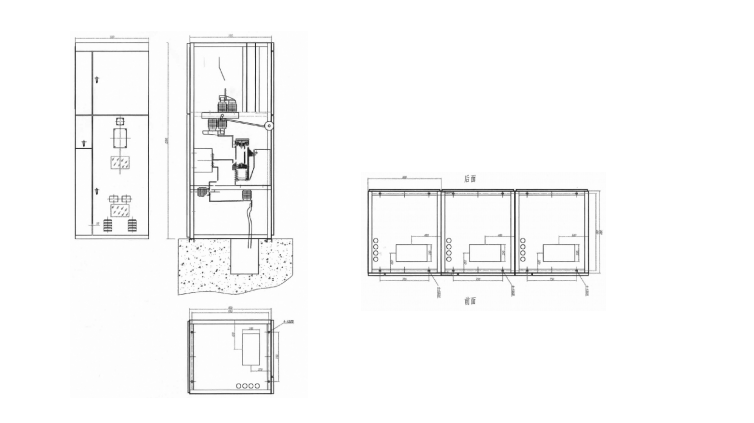

dimension	mm	900×900×2300（general form）
Weight	kg	800
