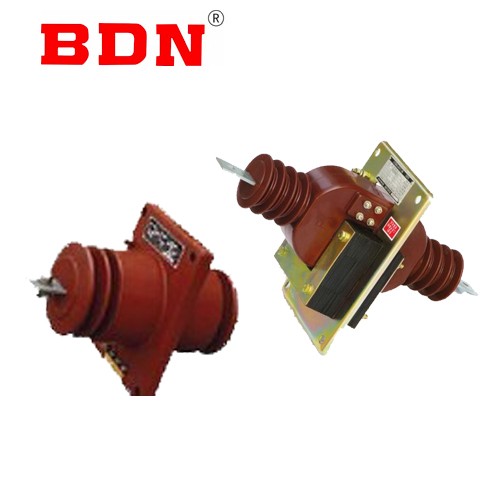

Reinforced insulation type current transformer

General:

This type of current transformer is a semi-enclosed, indoor type product. Suitable for AC 50Hz, 10KV and below lines, power supply flow, electrical power measurement and relay protection.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

  Rated secondary current: 5A or 1A

  Type	Rated primary current（A）	Accuracy classes combination	Rated secondary output(VA)				1s  Thermal current（A）	Rated  dynamic current（KA）
  LA-10Q LAZB-10Q	5/5	0.2S/10P10 0.2/10P10 0.5/10P10 1/10P10 10P15/10P15	10	10	10	15	0.5	0.8
  	10/5						0.9	1.6
  	15/5						1.4	2.4
  	20/5						1.8	3.2
  	30/5						2.7	4.8
  	40/5						3.8	6.4
  	50/5						4.5	8
  	75/5						6.8	12
  	100/5						9	16
  	150/5						13.5	24
  	200/5						18	32
  	300/5						22.5	40.5
  	400/5						30	54

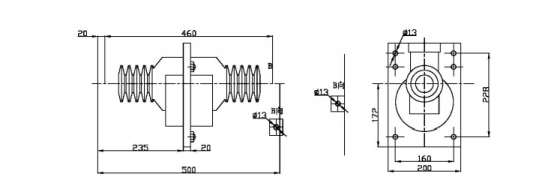

Drawing
