LV fixed divided switch cabinet

General:

 As a power system power plant, substations, industrial and mining enterprises and high-rise buildings to receive electricity, feed, lighting, motor control and reactive power compensation.

Service Environment

• The ambient air temperature should not be higher than +40 ° C or lower than -5 ° C, and the average temperature within 24 hours should not be higher than +35 ° C. If the temperature exceeds the limit, the capacity should be reduced according to the actual conditions.

• For indoor use, the altitude of the use place shall not exceed 2000m.

• The relative humidity of the surrounding air does not exceed 50% at the maximum temperature of +40 ° C, and a larger relative humidity is allowed at lower temperatures: such as 90% at +20 ° C, the effect of condensation that may occur occasionally due to changes in temperature should be taken into account.

• The inclination of the vertical plane when the device is installed does not exceed 5%, and the whole group of cabinets is relatively flat.

• The device shall be installed in a place free from violent vibration and shock and insufficient to cause undue corrosion of electrical components.

• When the user has special requirements, it can be negotiated with the manufacturer.

Key Feature

• Fixed divided switchgear

• Power distribution Center (PC cabinet) and motor Control Center (MCC cabinet)

• The cabinet is equipped with an independent PE grounding system and N neutral conductor

Technical Data

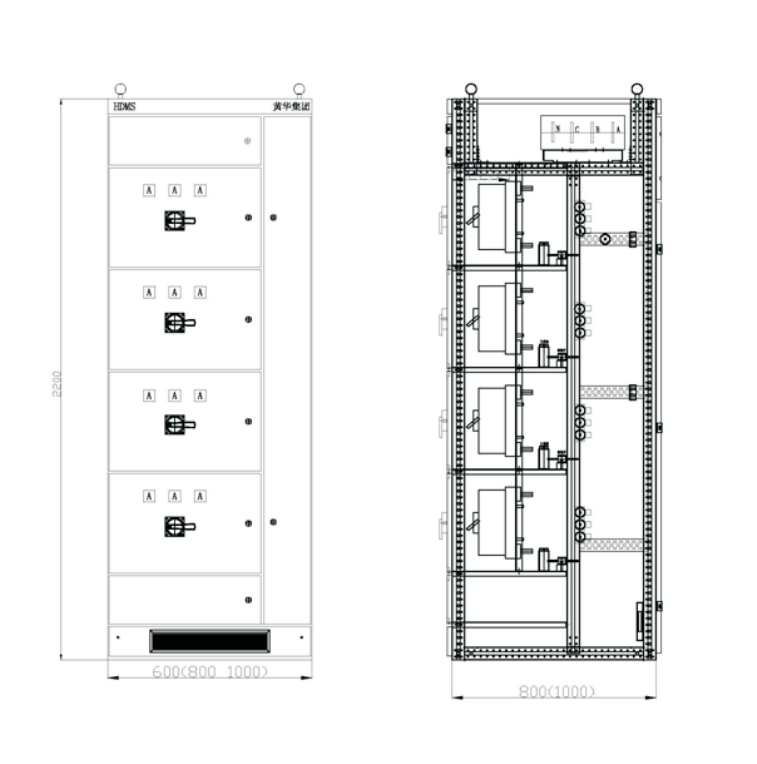

Drawing
