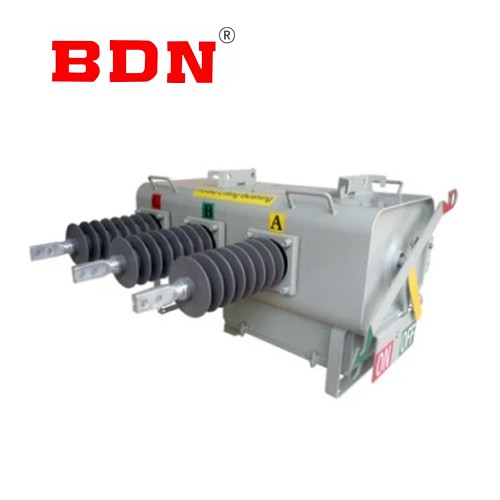

Outdoor AC high-voltage load switch

General:

The live tank is used to divide the load current and close the short-circuit current in urban and rural overhead distribution network, and can also break the no-load current of the transformer and the cable charging current at a certain distance.

Service Environment

• Ambient air temperature: -40℃ ~ +50℃;

• Altitude: no more than 3000m;

• The surrounding air can be polluted by dust, smoke, corrosive gas, steam or salt spray, pollution grade: Ⅳ;

• The wind speed does not exceed 34m/s (equivalent to 700Pa on the surface of the cylinder);

• Vibration or ground movement from outside switchgear and control equipment is negligible;

• The amplitude of electromagnetic interference induced in the secondary system does not exceed 1.10kV.

Key Feature

• SF6 (purity 99.99%) as a breaking and insulating medium.

• Stainless steel shell, fully enclosed by argon arc welding, with good anti-corrosion properties and sealing properties.

• Use low energy storage motors.

• It can be used under various external conditions.

• Light weight and easy to handle.

• Truly maintenance-free.

• When the gas pressure is reduced to 0.03 ~ 0.07MPa, the switch can automatically lock.

• High strength insulation performance.

• Equipped with explosion-proof safety devices

Technical Data

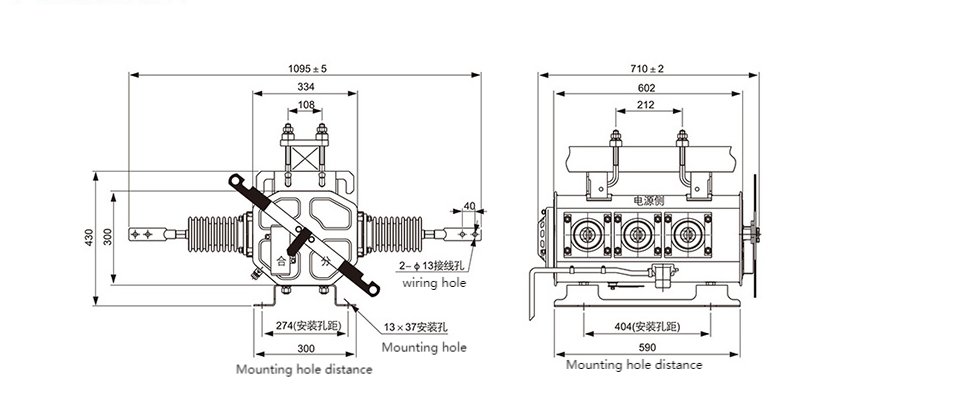

Drawing
