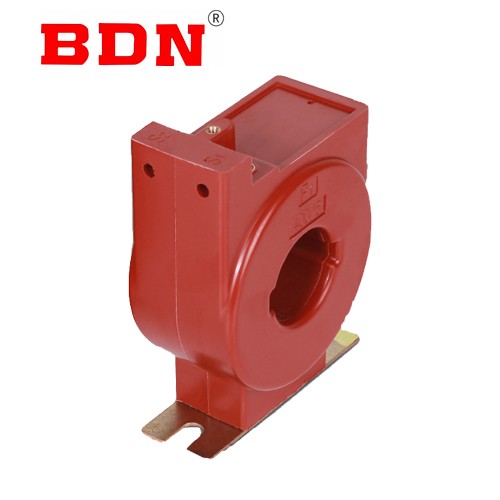

low voltage State Grid cast current transformer

General:

The current transformer is used for current and electric energy measurement or relay protection in AC lines with rated frequency of 50Hz and rated operating voltage of 0.66kV and below.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A

  Type	Rated current ratio（A）	Accuracy classes	Rated secondary burden（VA）
  LMZ2D-0.66	75/5-200/5	0.2S、0.5S	5-2.5
  	75/1-200/1	0.2S、0.5S	2.5-1

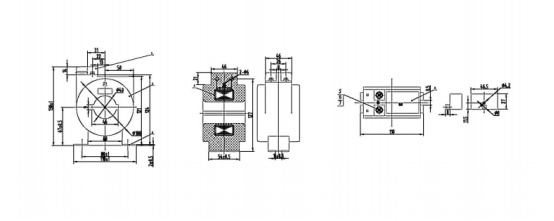

Drawing
