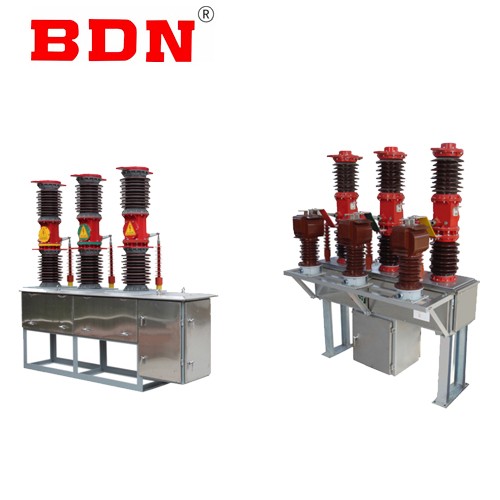

Power station outdoor HV vacuum circuit breaker

Outdoor high vacuum circuit breaker phase AC 50Hz, rated voltage of 40.5kV outdoor high-voltage electrical equipment.Spring mechanism attached to or electromagnetic actuator can remote control electrical sub-, sub-gate can also be storage place
manually,manually opening and closing. design performance meet GB1984-2003AC voltage circuit breaker as the national standard, and meet IEC-56high voltage AC circuit breakers IEC standards.

General:

Vacuum circuit breaker is mainly used for outdoor 35kV power transmission system control and protection also applies to urban and rural power distribution networks and industrial and mining enterprises in the normal operation and short circuit protection purposes. The product overall structure of the pillars for the vase style; on insulator mounted within the vacuum interrupter, the main column under the porcelain vase porcelain vase. for frequent operation place. and have good sealing, anti-aging, high pressure, no burning, no explosion, long service life, installation and maintenance and convenient.

Service Environment

Ambient Temperature:-30℃~+40℃
Altitude:≤1000m (if the altitude increased, then the insulation must be higher)
Wind Pressure: no more than 700Pa (equal to 34m/s wind speed)
Earthquake Level: no greater than 8
Pollution Level: IV
Maximum Temperature Drop: no more than 25℃

Key Feature

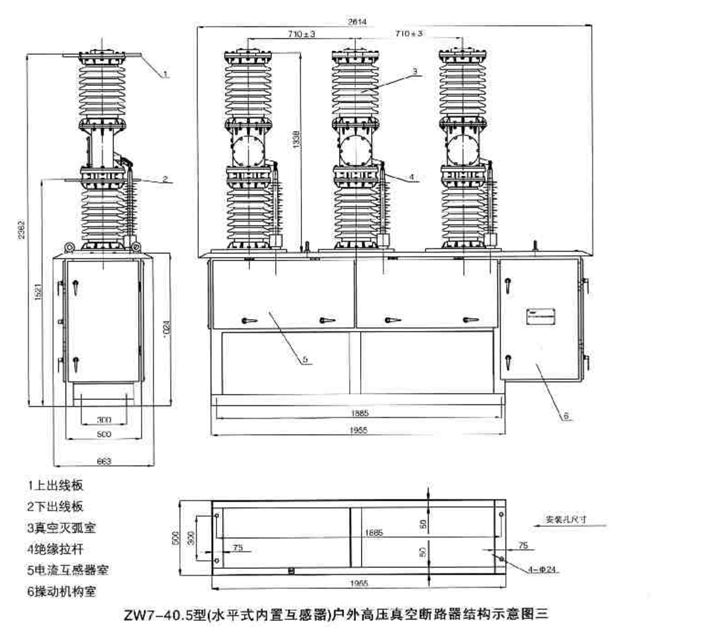

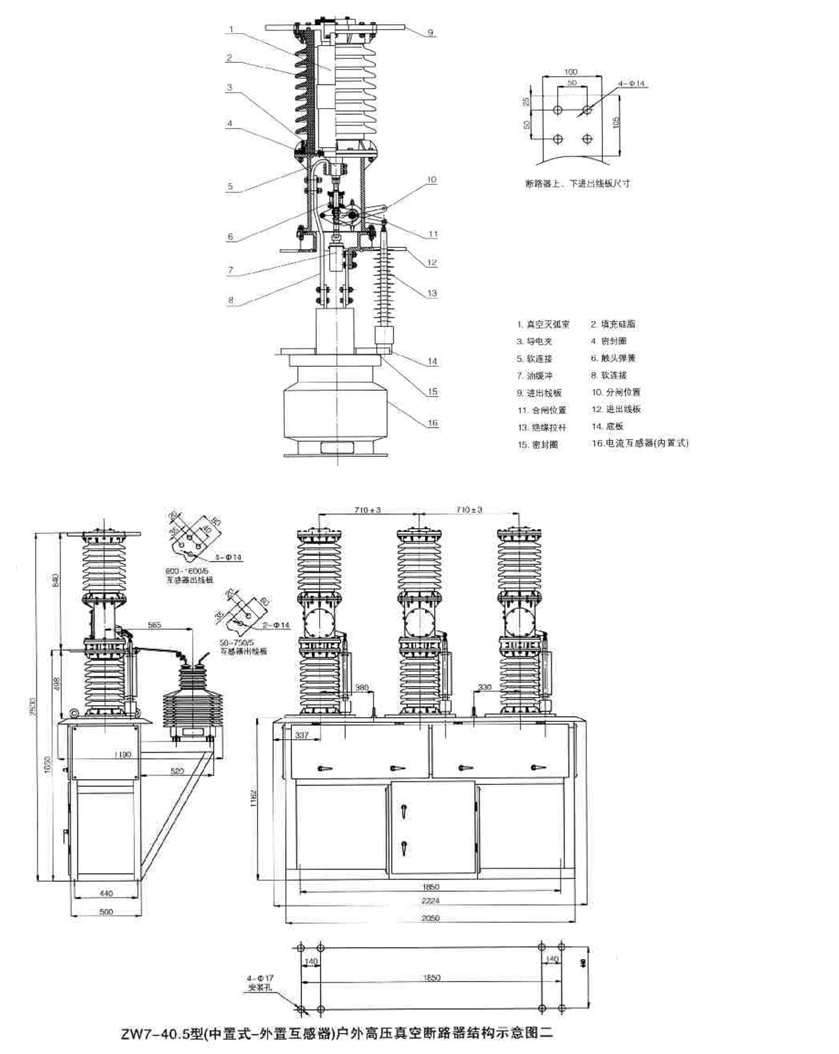

Porcelain pillar structure, waterproof transmission box, new type vacuum arc extinguishing chamber
2-3 current transformers, four coils per phase, according to user needs to choose changes
Can be equipped with CD10 electromagnetic mechanism or CT19 spring mechanism
Good breaking performance, high reliability, long life, small maintenance workload
No oil, no gasification, economic and environmental protection;

Technical Data

Name			Unit	Data
Rated Voltage			kV	40.5
Rated Insulation Level	1Min Power Frequency withstand Voltage	Dry		95
		Wet		80
	Lightning Impulse withstand Voltage(Peak)			185
Rated Current			A	630;1250;1600;2000
Rated Short-circuit Breaking Current			kA	20;25;31.5;40
Rated Operating Sequence				0-0.3s-CO-180s-CO
Rated Short-circuit Opening Times			times	20
Rated Short-circuit Closing Current(Peak)			kA	50:63:80
Rated Peak withstand Current				20;25;31.5
Rated Short Time withstand Current			kA	31.5
Rated Short-circuit Duration			s	4
Average Closing Speed			m/s	0.7±0.2
Average Opening Speed				1.5±0.2
Closing Time				≤150
Opening Time				≤60
Mechanical Life			times	10000
Rated Operating Voltage and Auxiliary Circuit Rated Voltage			V	AC/DC110/220
DC Current Resistance of Each Phase (Without transformer)			μΩ	≤100
Weight			KG	1100
