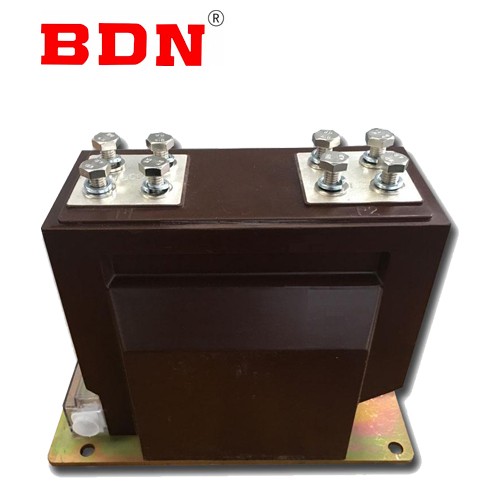

Pillar type indoor current transformer

General:

This type of transformer is an epoxy resin cast completely closed structure, its core is made of microcrystalline alloy or high-quality magnetic conductive silicon steel sheet wound into a ring, the secondary wire evenly wound on the top, the product is equipped with 3-4 secondary winding, with high performance and high parameter characteristics. The primary conductor is wrapped with reinforced insulation to avoid short circuit between turns. Ground bolts and mounting holes are provided on the base plate.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A




  Rated primary current（A）	10-40	50-100	100-300	400-500	600-1000	1200-1600	2000-3150
  1s thermal current（kA）	200lin	250lin	45	100	140	170	240
  Rated dynamic current（kA）	500lin	625lin	100	250	350	425	600

  Accuracy class combination	10-200A						300-600A
  	0.2S	0.2	0.5	10P10	10P15	10P20	0.2S	0.2	0.5	10P10	10P15	10P20
  0.2(S)/10P 0.5/10P 0.2(S)/0.2(S)0.5/0.5	10	10	20	40	30	20	10	10	20	40	30	20
  0.2(S)/0.5/10P	10	10	15	30	20	15	10	10	15	40	30	20
  0.2(S)/10P/10P 0.5/10P/10P	10	10	15	20	15	/	10	10	15	30	20	/
  0.2(S)/0.5/10P/10P	10	10	15	15	/	/	10	10	15	15	/	/
  0.2/0.2/0.5/10P	10	10	15	15	/	/	10	10	15	15	/	/

  Accuracy class combination	800-1200A						1500-3000A
  	0.2S	0.2	0.5	10P10	10P15	10P20	0.2S	0.2	0.5	10P10	10P15	10P20
  0.2(S)/10P 0.5/10P 0.2(S)/0.2(S)0.5/0.5	10	15	20	60	40	30	10	10	20	60	40	30
  0.2(S)/0.5/10P	10	15	20	50	40	30	10	15	20	50	40	30
  0.2(S)/10P/10P 0.5/10P/10P	10	15	15	30	20	15	10	15	15	50	30	20
  0.2(S)/0.5/10P/10P	10	15	15	20	15	/	10	15	15	20	15	/
  0.2/0.2/0.5/10P	10	15	15	20	20	/	10	10	15	30	20	/

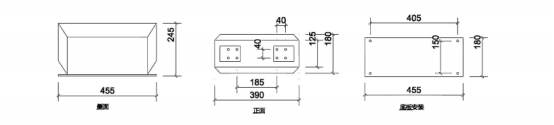

Drawing
