special current transformer for on-column circuit breaker

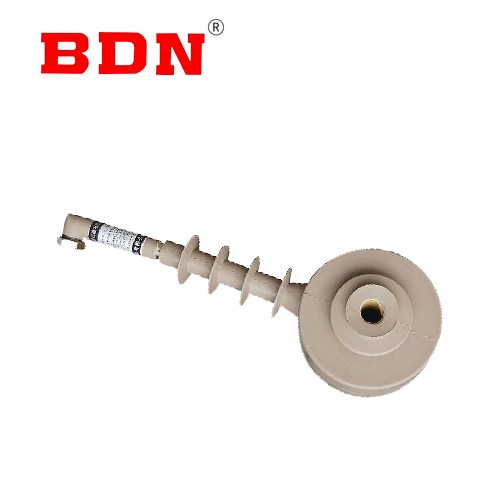

Current transformer is cast 12kV current transformer, belongs to dry type current transformer, outdoor current transformer, is ZW32 vacuum circuit breaker special current transformer, suitable for outdoor installation, can be used as measurement, measurement current transformer.

EMAIL

General:

Current transformer is cast 12kV current transformer, belongs to dry type current transformer, outdoor current transformer, is ZW32 vacuum circuit breaker special current transformer, suitable for outdoor installation, can be used as measurement, measurement current transformer.

Technical Data


  • The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

  • Rated insulation level: 12/42/75kV

  • Power factor of load: COSΦ=0.8

  • Rated frequency: 50Hz, 60Hz

  • Rated secondary current: 5A or 1A



Rated primary currentA

Rated primary currentVA

0.2(S)

0.5(S)

5P

10P

50-75-100

3.75

5

5

10

75-100-150

100-150-200

5

7.5

150-200-300

7.5

200-300-400

10

10

10

300-400-500

15

400-500-600

500-600-800

600-800-1000

15

15

20

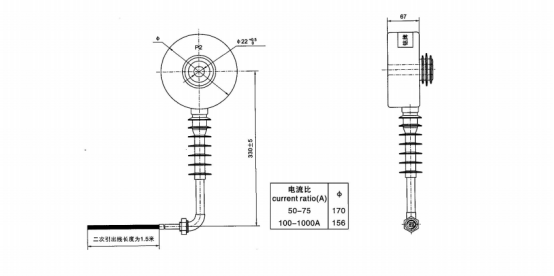

Drawing
