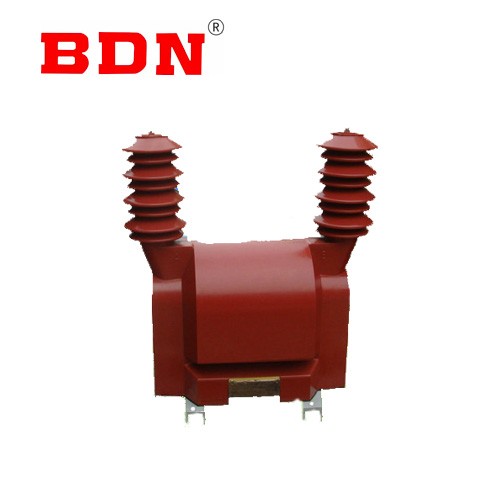

PT 35KV single potential transformer

The PT is an epoxy resin vacuum casting fully enclosed structure, suitable for rated frequency 50HZ, rated voltage 35KV and below outdoor equipment power system, for voltage, electric energy measurement and relay protection

General:

Voltage transformer is an outdoor epoxy resin vacuum casting fully enclosed structural transformer, suitable for rated frequency 50HZ, rated voltage 35KV and below outdoor equipment power system, for voltage, electric energy measurement and relay protection.

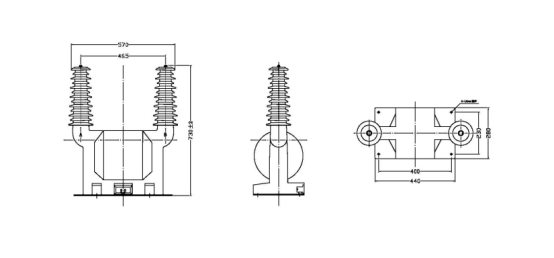

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV,7.2/30/60
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Rated voltage ratio	Accuracy class and rated burden（VA）							Limit output	Rated insulating level(kV)
Type	Rated voltage ratio	0.2	0.5	Level1	Level3	0.2/0.2 0.2/0.5	0.5/0.5	3P 6P	Limit output	Rated insulating level(kV)
JDZW-35	35000/100	60	120	300	600	-	-	-	1200	40.5/95/200
JDZW-35	35000/100/100	-	-	-	-	30/30 30/40	60/60	-	600/600	40.5/95/200
