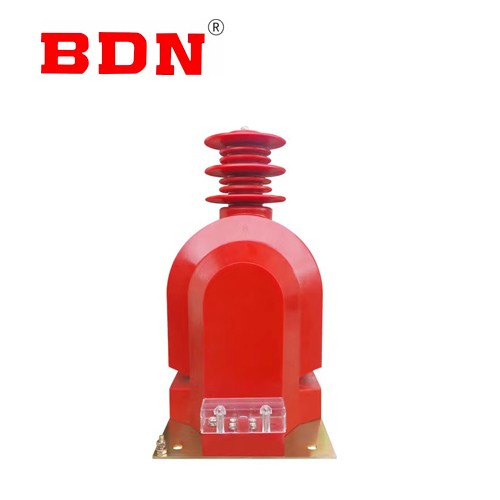

33-36kv indoor single phase potential transformer

General:

The voltage transformer is a completely closed structure of epoxy resin casting, the insulating medium is epoxy quality, the iron core and coil are fixed in the transformer by epoxy resin casting. The voltage level is generally 35kV and below, and a few 66kV are also available. Suitable for rated frequency 50Hz or 60Hz, rated voltage 35kV power system, for electric energy measurement, voltage monitoring and relay protection. This product conforms to IEC60044-2 and GB1207 "voltage transformer" standards.

Key Feature

• This type of voltage transformer has a pillar structure and is fully enclosed and cast with epoxy resin.

• It is resistant to pollution and humidity, and is also suitable for use in tropical areas. The transformer does not need special maintenance, and only needs to remove surface dirt regularly. Because the transformer is fully enclosed and castable, it is small in size, light in weight, and suitable for installation in any position and direction.

• The terminal box is installed at the secondary outlet terminal, and there are three terminal holes on the box, which can lead the secondary wire from different directions, and the wiring is convenient, safe and reliable, and can realize the measures to prevent electric theft.

Technical Data

• The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements

• Rated insulation level: 12/42/75kV,7.2/30/60

• Power factor of load: COSΦ=0.8

• Rated frequency: 50Hz, 60Hz

• Rated secondary current: 5A or 1A

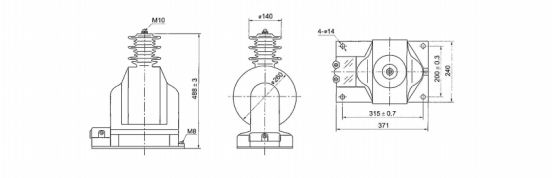

Drawing
