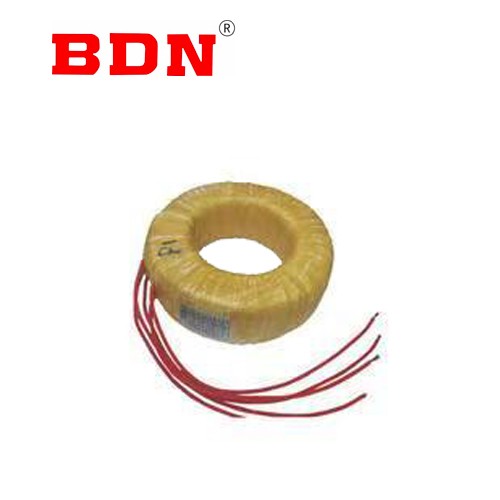

CT load type current transformer

Consumer such as have the special requirment and was negotiated by both parties certainty.The current transformer can but using one of the ransformation ratios, and that can't using several transformation ratios at the same time.

General:

Technical Data

The performance of products is conformed to IEC61869-1:2007, IEC61869-2:2012 commission requirements
Rated insulation level: 12/42/75kV
Power factor of load: COSΦ=0.8
Rated frequency: 50Hz, 60Hz
Rated secondary current: 5A or 1A

Type	Stable primary current(A)	Rated secondary voltage(A)	Accuracy class and rated burden(VA) COS∅=0.8	Rated insulating level(kV)
			10P10
LR(D)-35	20-30-50	5(1)		0.5/3
	50-100-150		10/10/15
	100-200-300		10/15/15
	200-300-400		10/15/15
	200-400-600		10/15/20
	600-1000-1200		20/30/50
